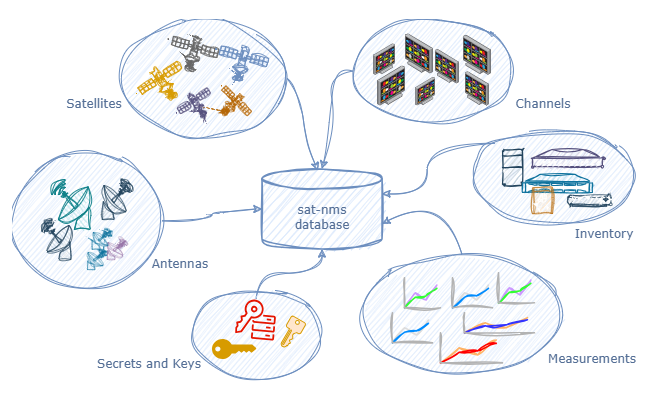

sat-nms database

For some applications its required to store additional data on the M&C system. For these purposes our platform provides a reliable and scalable database service that enables customers to securely store and manage data. By handling database provisioning, configuration, and maintenance in the background, we allow users to focus entirely on their operations instead of database management.

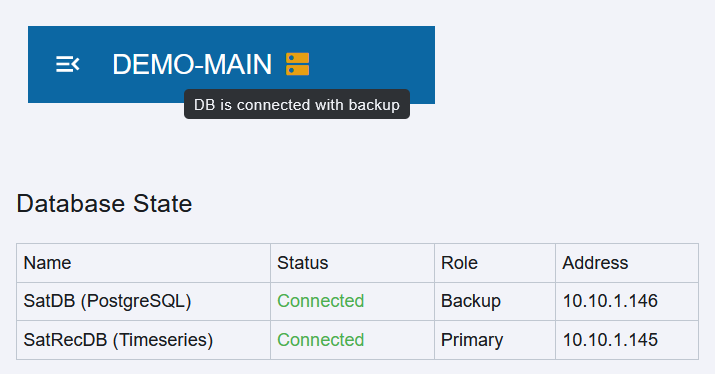

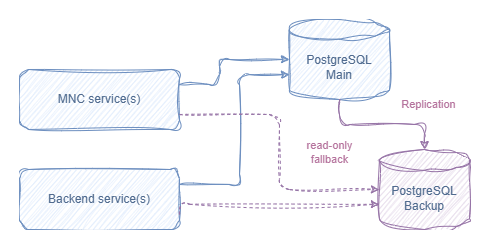

The solution is designed to integrate seamlessly into your existing environment. Whether you’re running a small installation on a single sat-nms MNC server or using a fully redundant database cluster, you have complete flexibility.

We rely on PostgreSQL, the world's most advanced open-source relational database - proven, stable and powerful to ensure reliability, scalability and long-term support.

We deliver our systems with a pre-installed and pre-configured database, including automated migration scripts to handle future schema updates, eliminating the need for manual database administration. For customers already operating PostgreSQL clusters, our platform can easily connect to existing database environments.

Our integrated data recorder is powered by TimescaleDB, a leading time-series database built on PostgreSQL, enabling efficient storage and analysis of telemetry and sensor data at scale.

• Efficient data collection: Capture relevant parameters, at defined intervals or on value changes.
• Optimized storage: store large volumes of historical data efficiently using compression and scalable architecture.

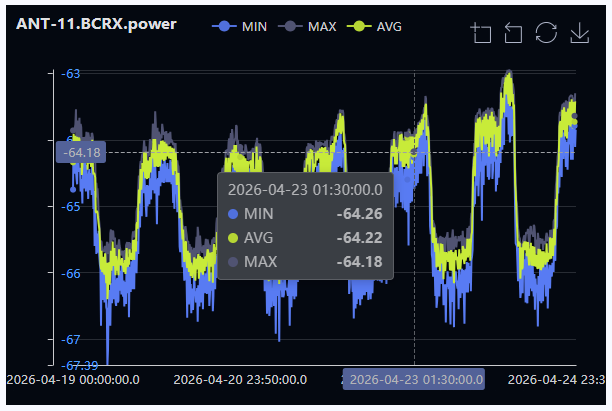

• Real-Time & historical analytics: query and analyze both live and historical data to gain operational insights.

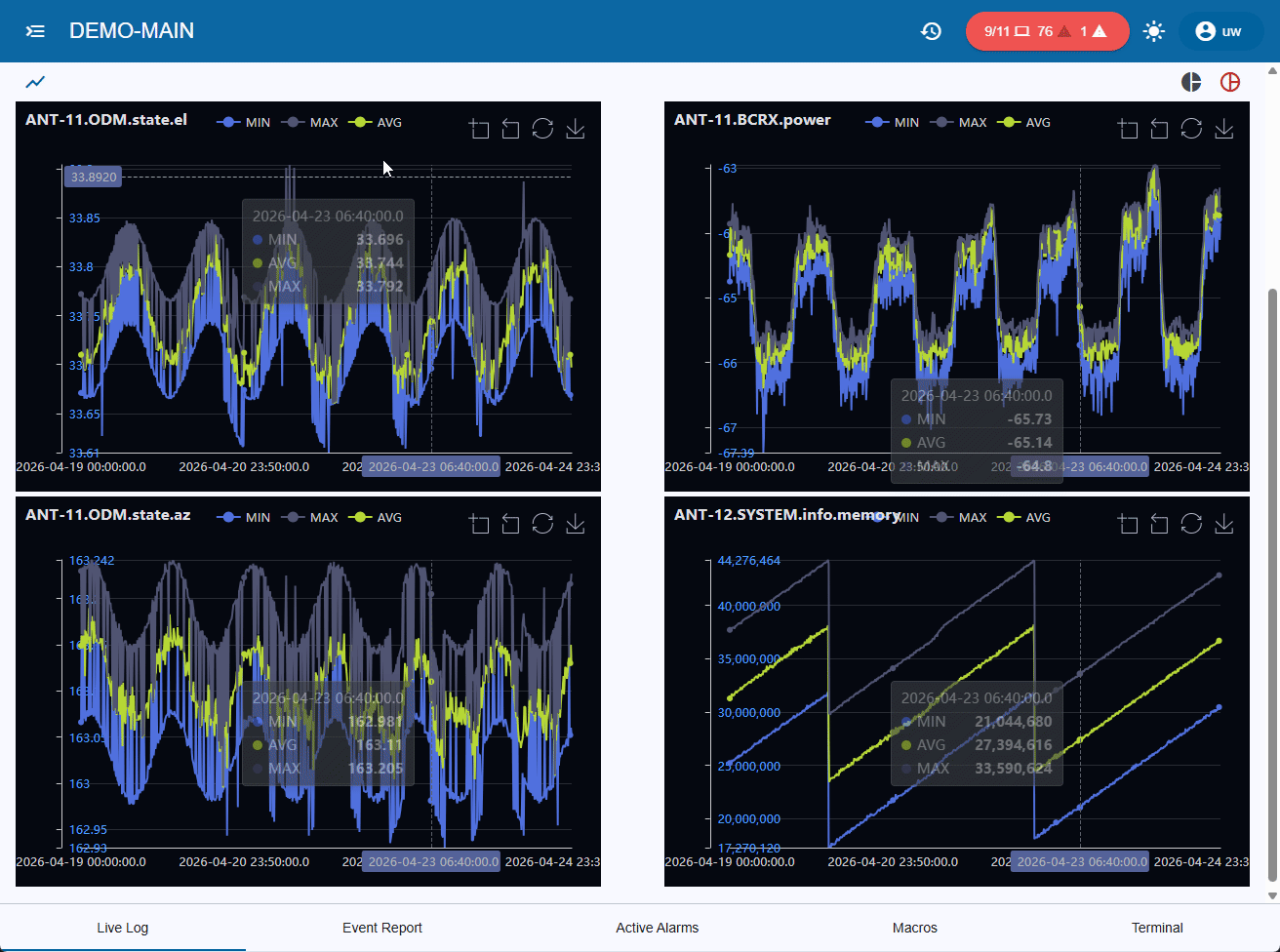

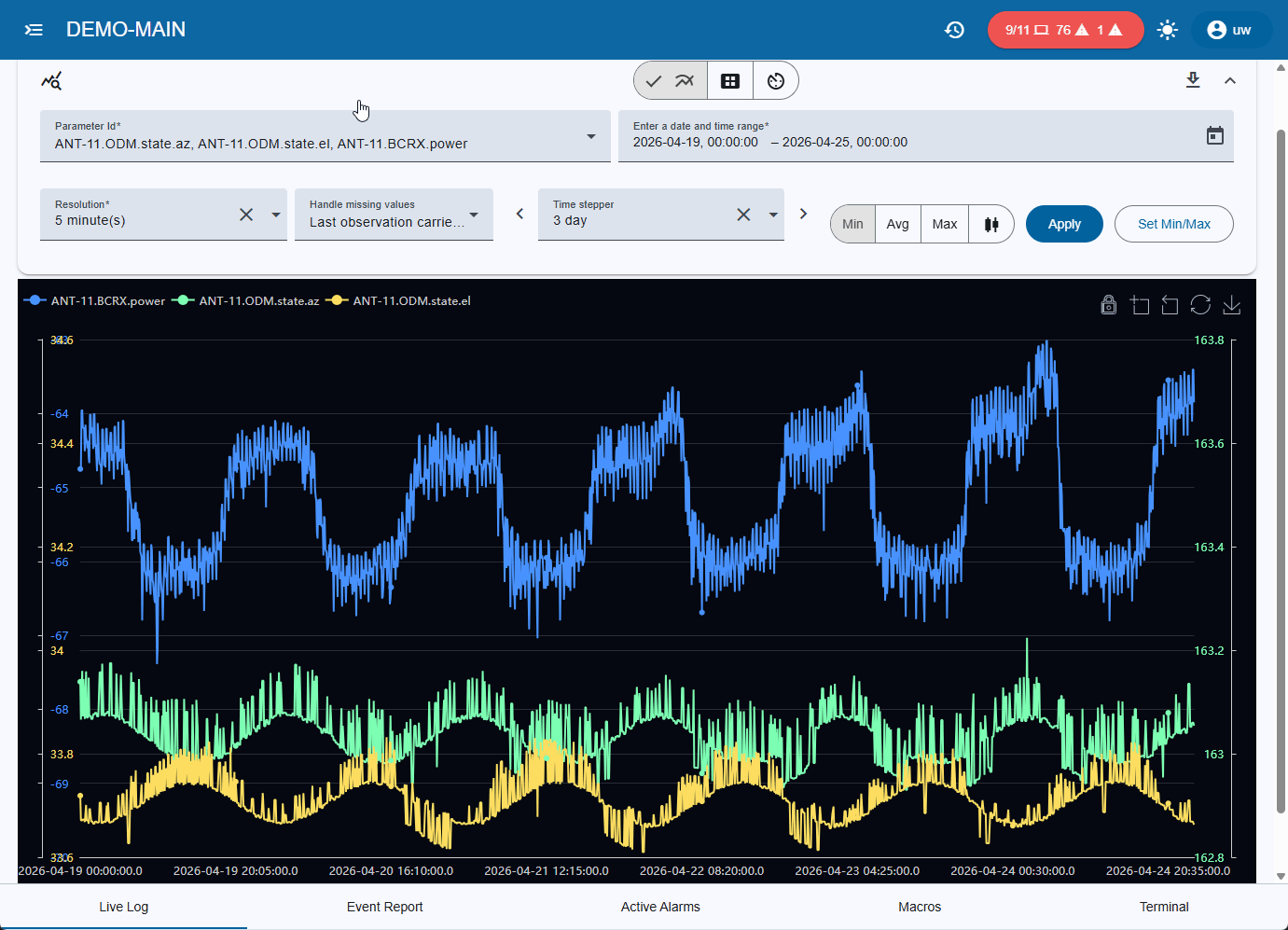

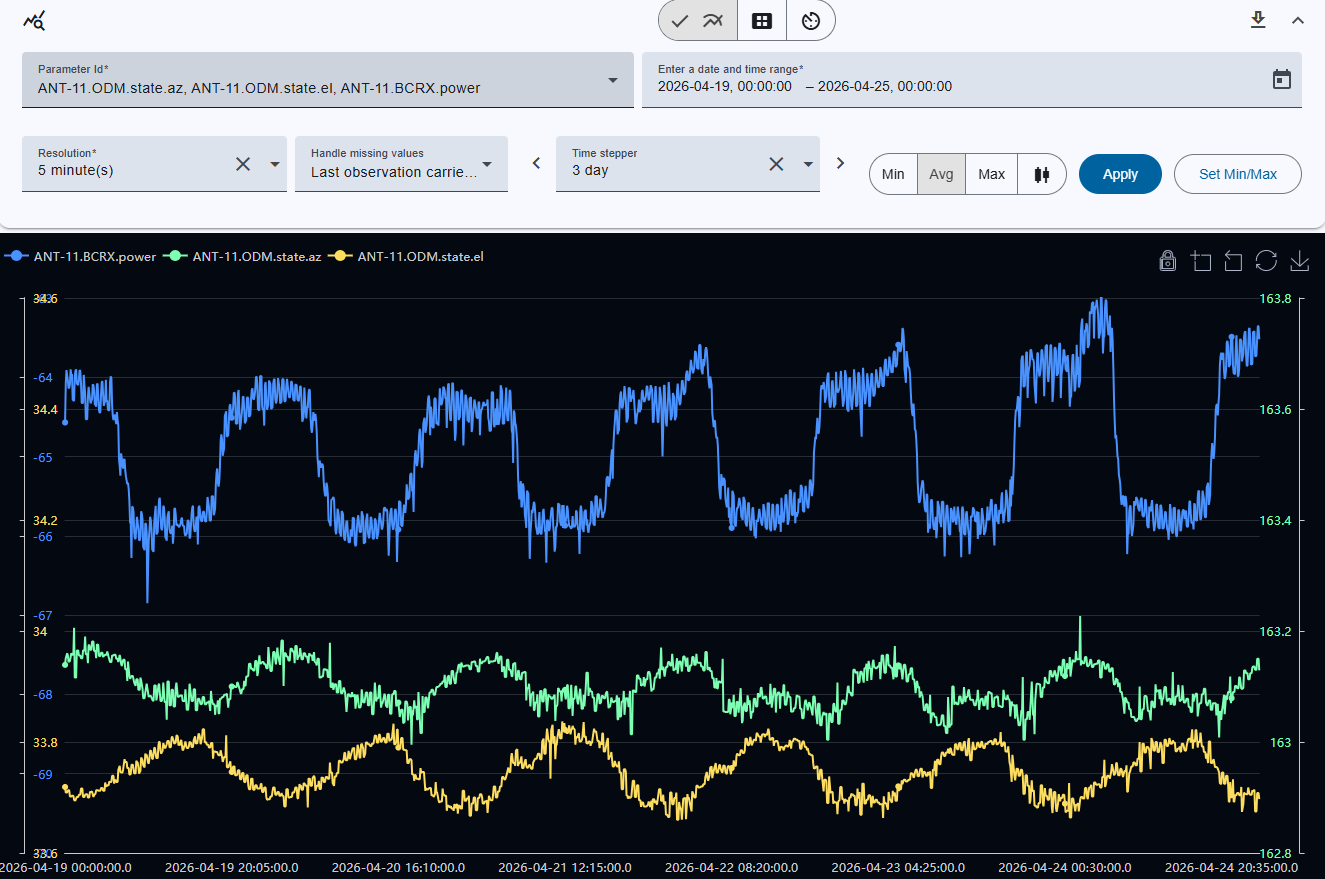

• Visualization & correlation: explore data through flexible graphs and correlate multiple parameters for deeper analysis.
• Data export: export queried data as CSV files for further analysis or external use.

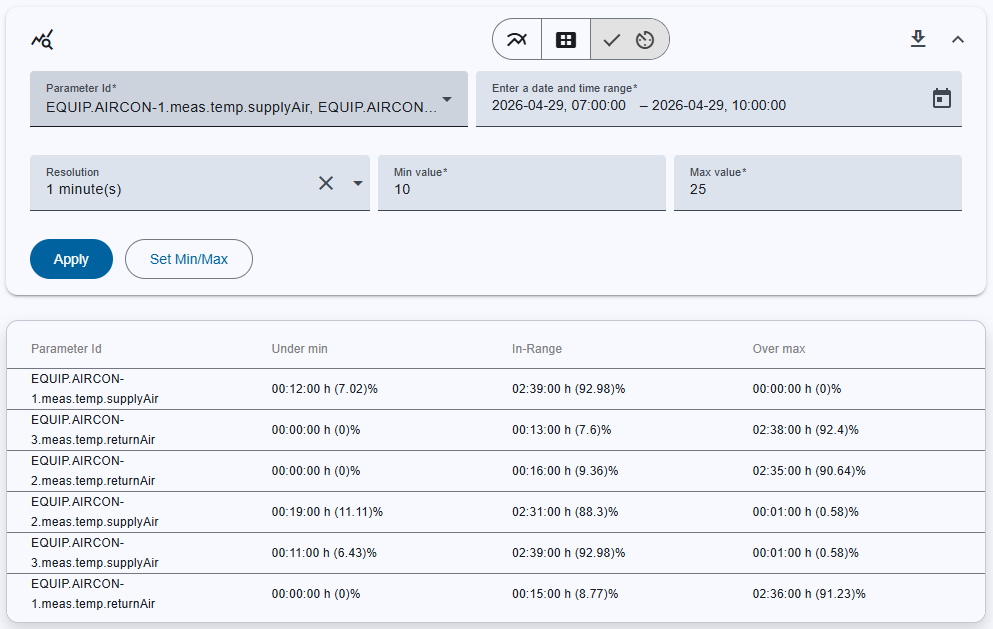

• Alerting & thresholds: define thresholds, trigger alarms, and measure duration of critical conditions.
• Data lifecycle management: manage retention policies and database behavior to balance performance and storage requirements.

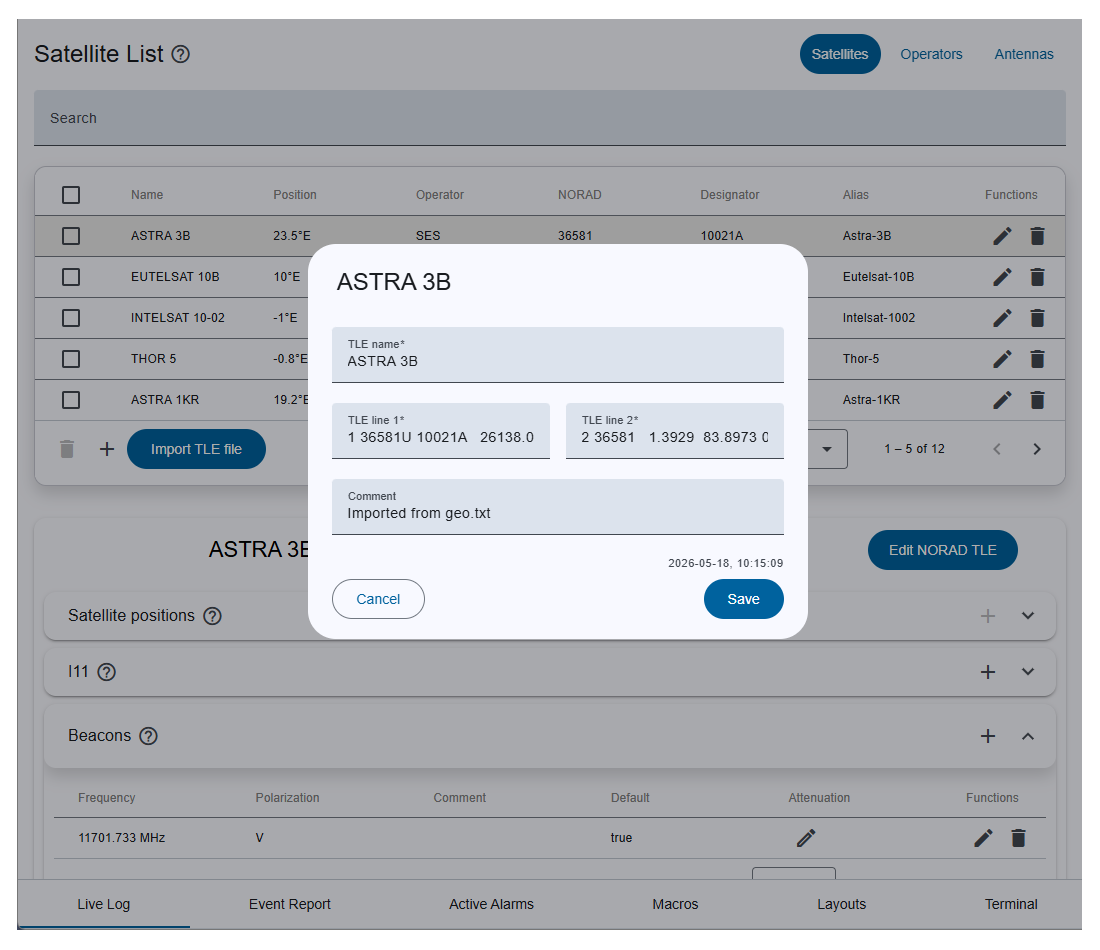

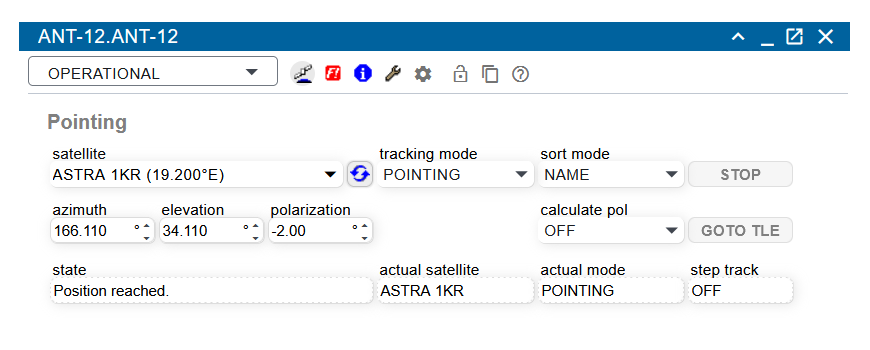

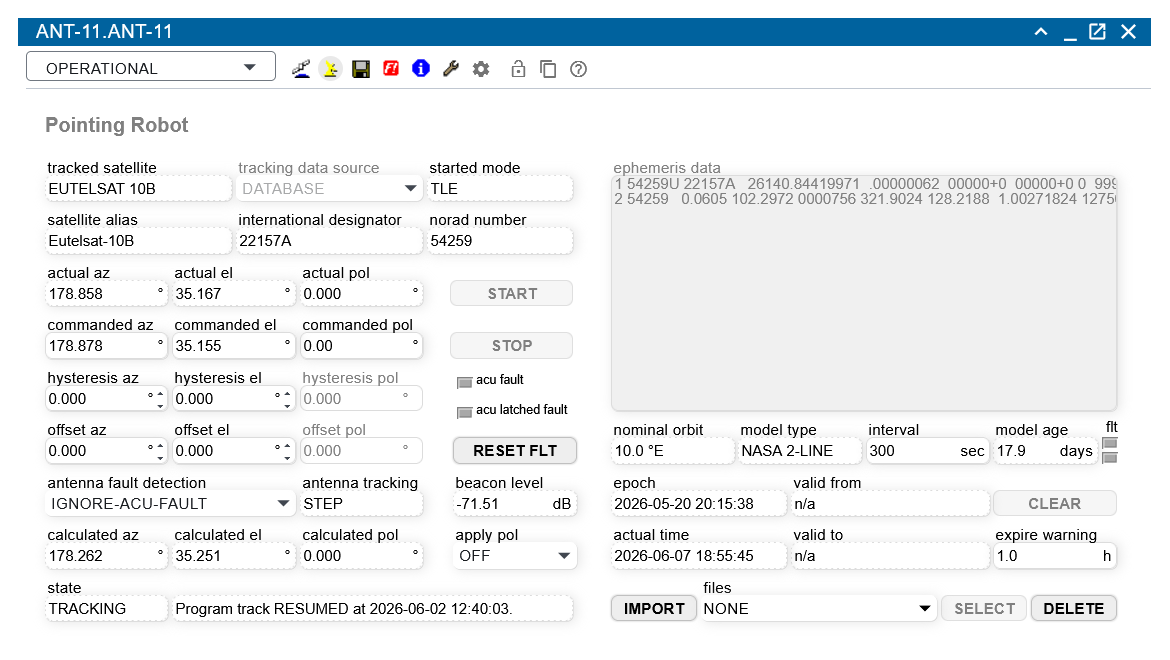

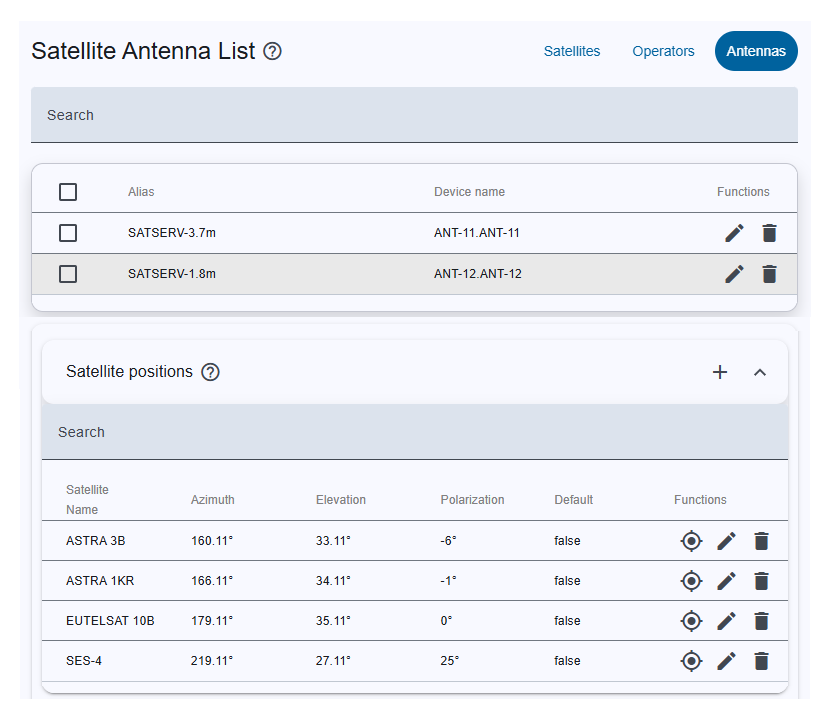

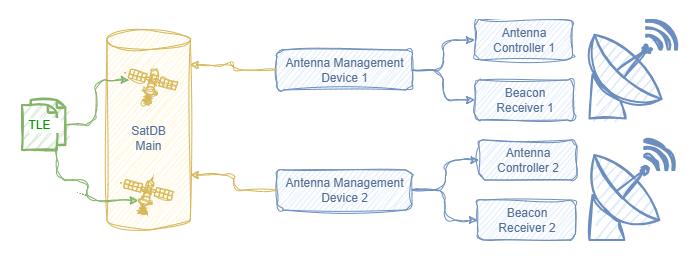

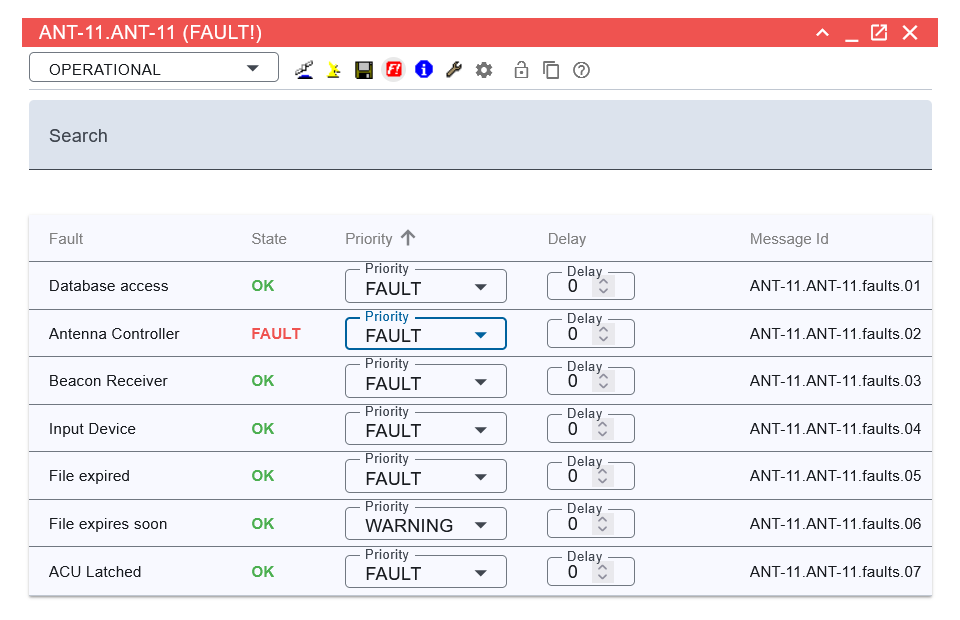

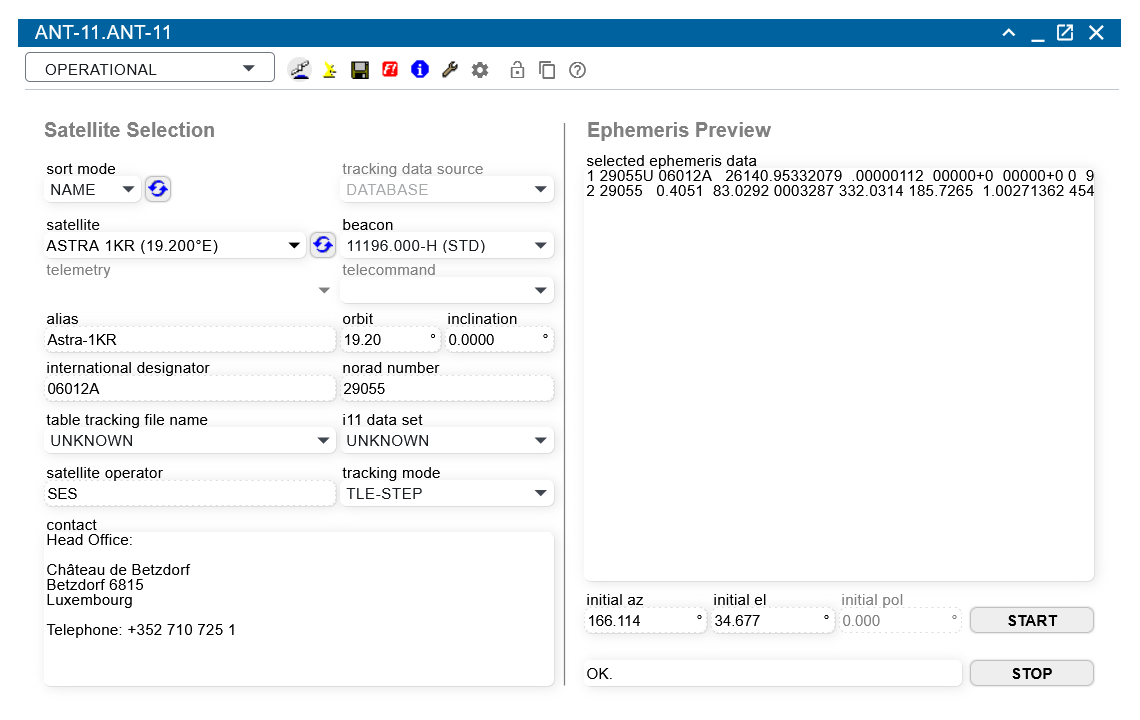

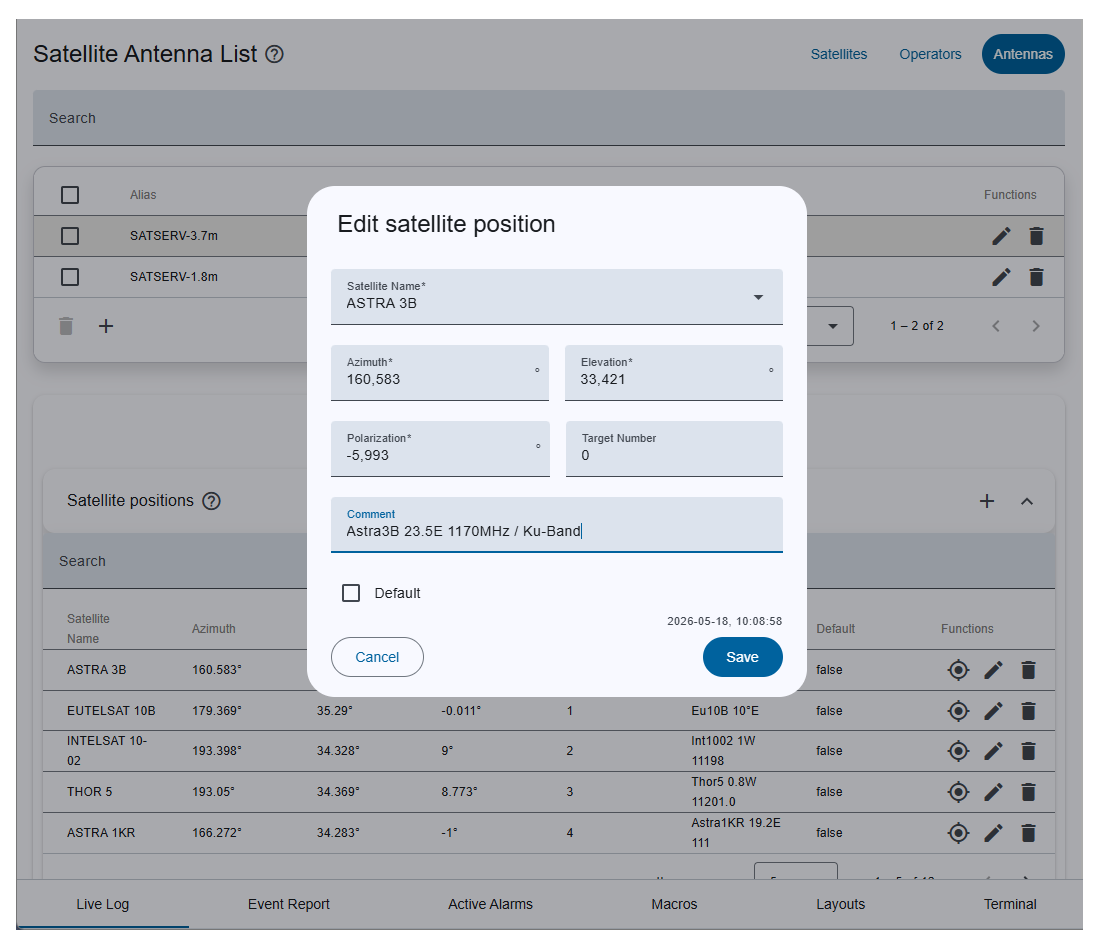

Data for all required satellites is stored in the central database and is then available to move every connected antenna. This ensures consistent naming and eliminates the need to save data multiple times for each antenna. Together with the Antenna-Management logical device you can use ephemeris data like Norad TLE Two-Line elements or Intelsat I11 elements stored in the database to perform antenna tracking through the sat-nms MNC system.

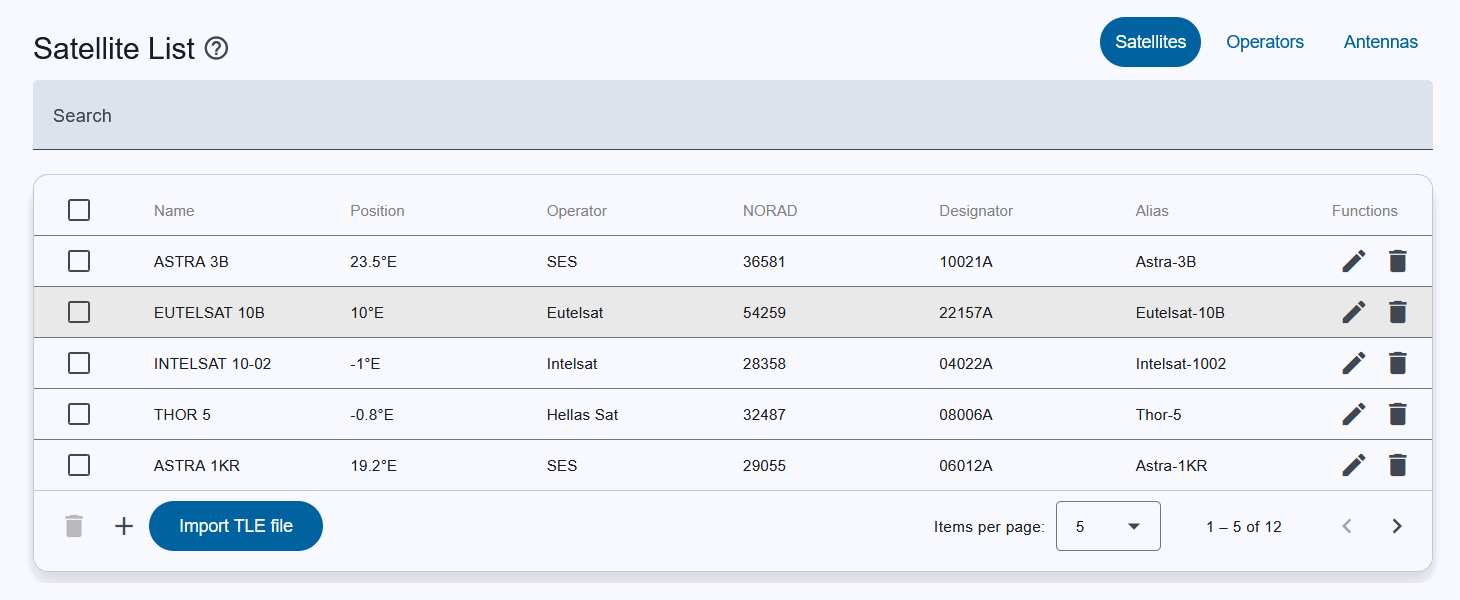

• central database for all satellites
• central store for ephemeris data
• table tracking from imported file
• integrated antenna scheduling
• update database via REST-API

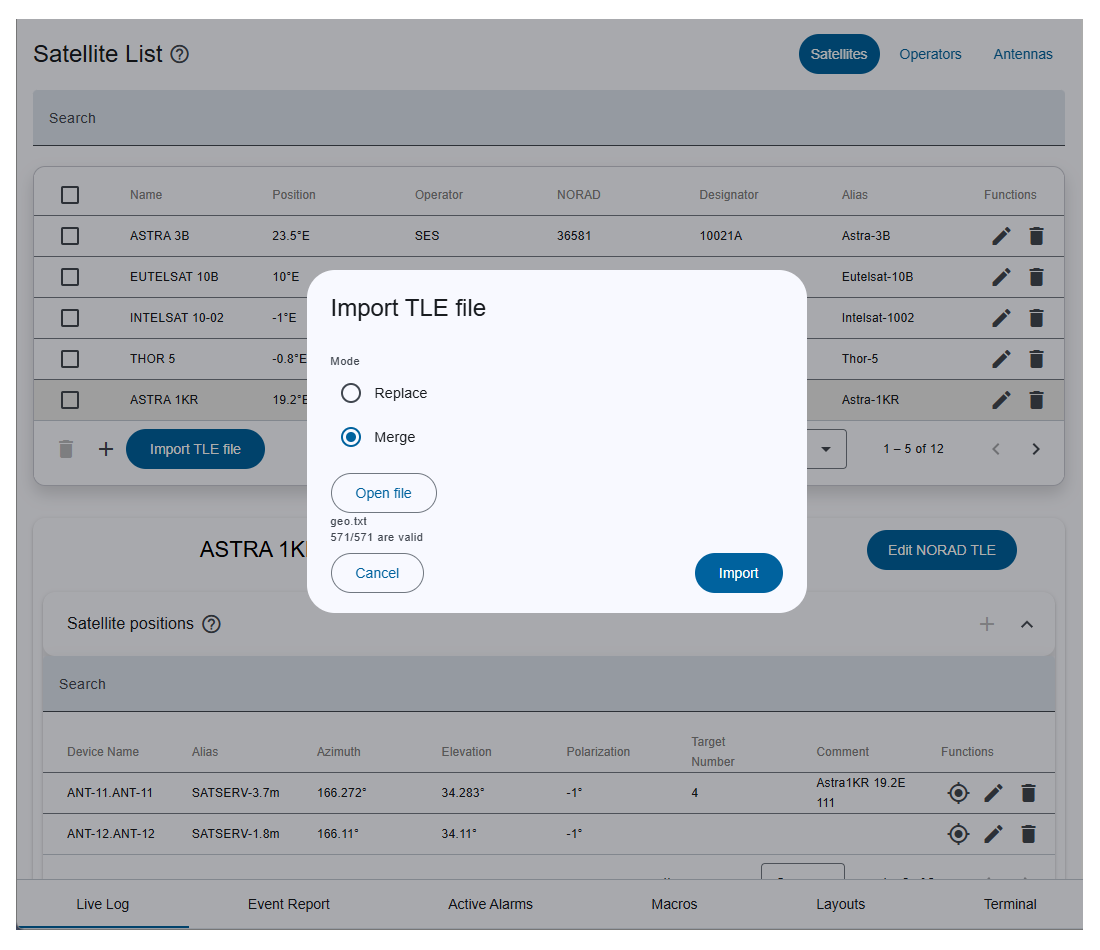

• TLE bulk import (e.g. Celestrak's geo.txt)
• satellite operator contact details

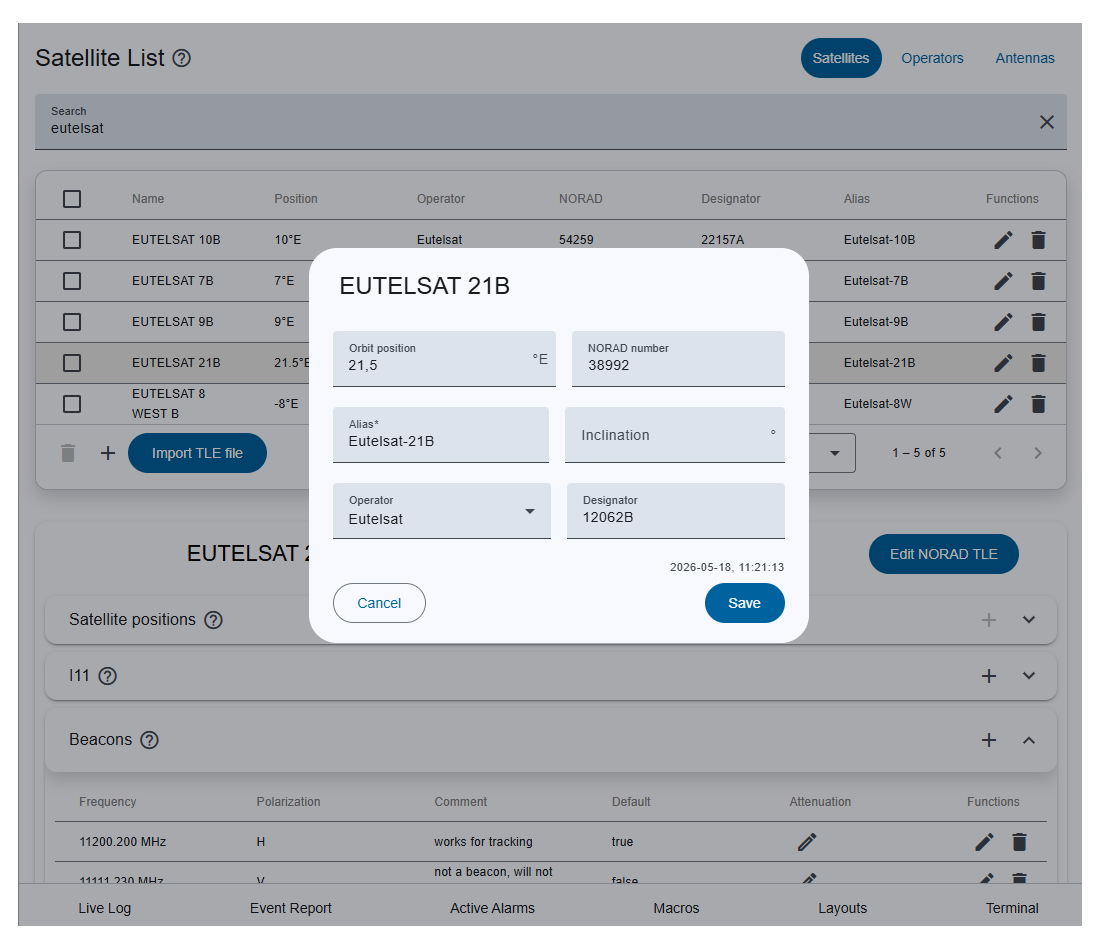

For each satellite additional information can be stored to configure receive or transmit equipment when moving to a new satellite. This includes:

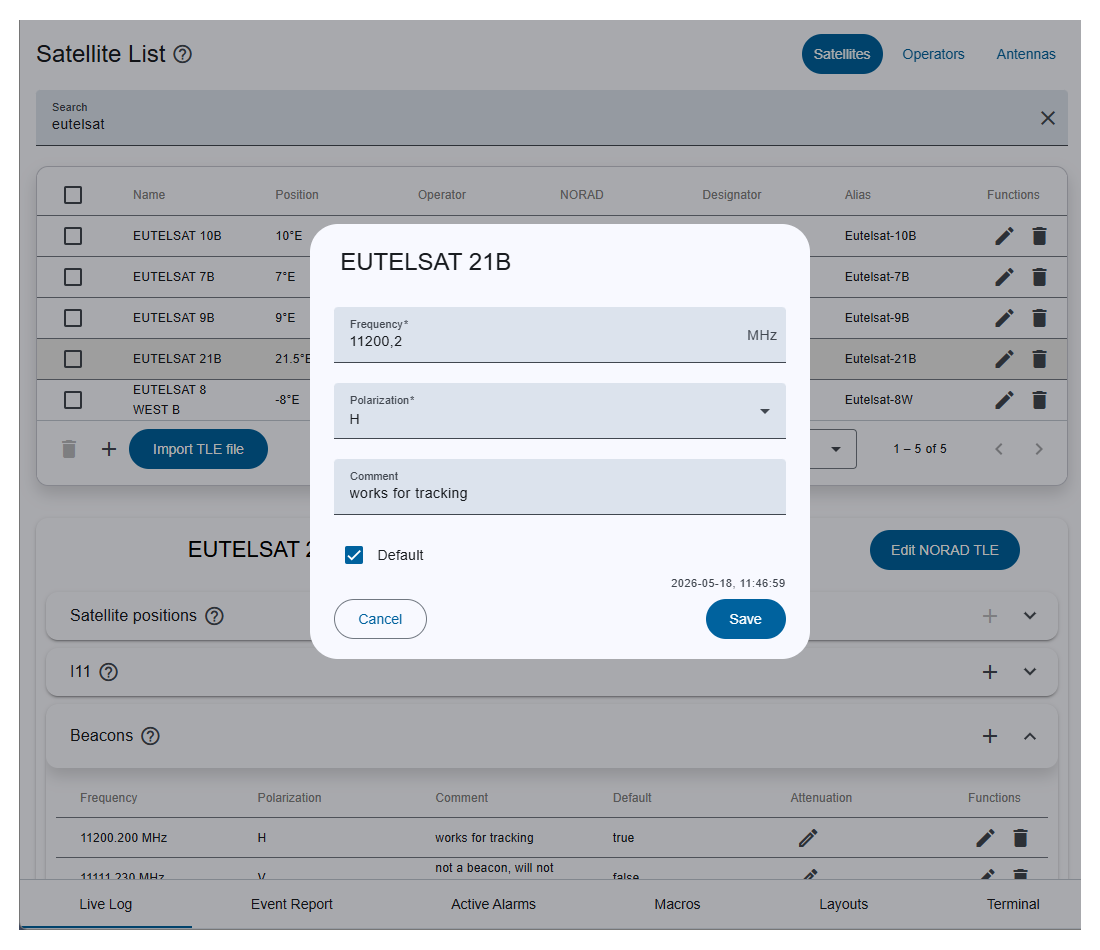

• multiple satellite beacons per satellite
• tele-command and telemetry channels

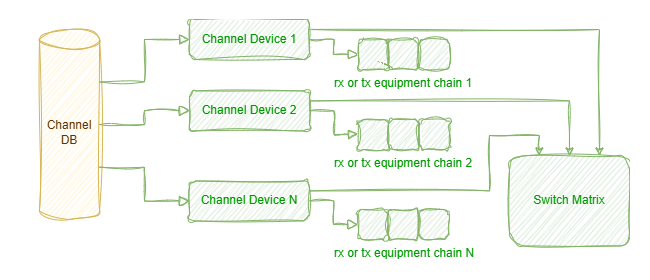

The Channel Database is a central store for receive and transmit channels. Its supports RF/Satellite channels as well as IP/Streaming channels. Channel devices using entries from the database to configuring RX equipment like IRD's, satellite demodulators or decoders and TX equipment like encoders or satellite modulators with one click.

• centralized channel management
• for satellite and streaming channels
• for transmitters and receivers

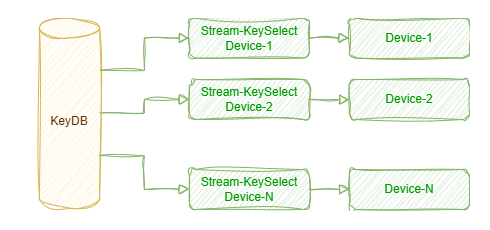

Store credentials for streaming or broadcast applications directly in the M&C system and send the keys with one click to the equipment if needed. No need to enter cryptically keys again and again, just assign a name and select it from a drop down list.

• BISS-1 and BISS-E keys with length and syntax check
• Any kind of password or passphrases
• for Encoders, IRD, DVB modulators etc.

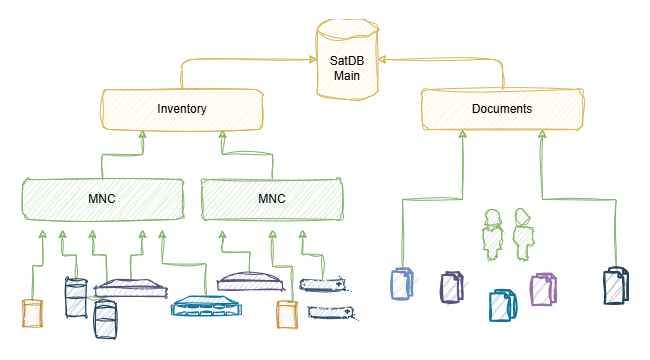

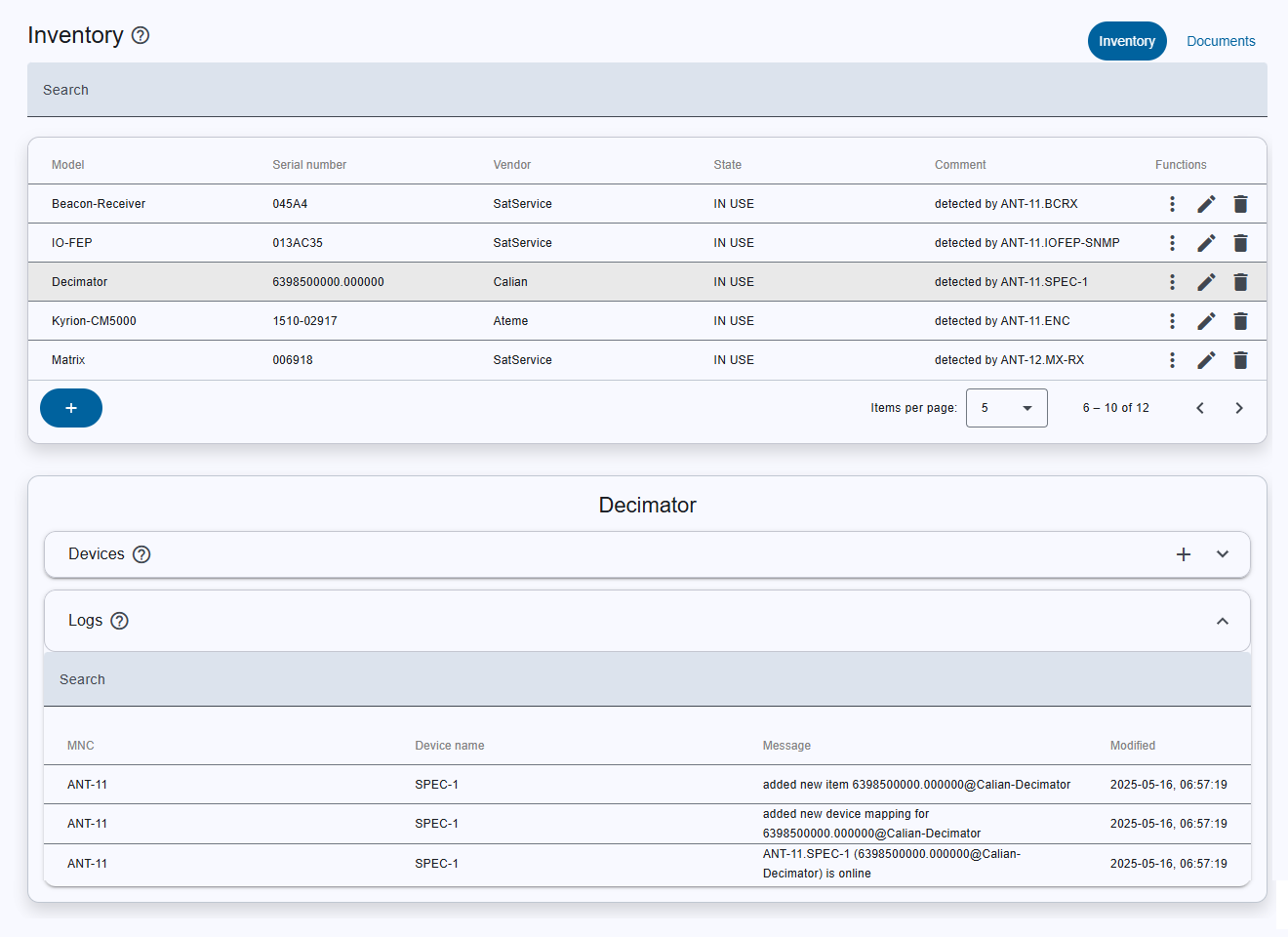

The Inventory Database provides two main functions: Tracking of equipment and assigning documents to devices. Devices can be identified and tracked by the system using their serial number and device type. This creates an inventory of equipment connected to the sat-nms MNC systems.

• automatically add new devices to the inventory
• tracks devices across MNC systems
• create logbook of state changes (online / offline)
• add user defined logbook entries (e.g. repairs)

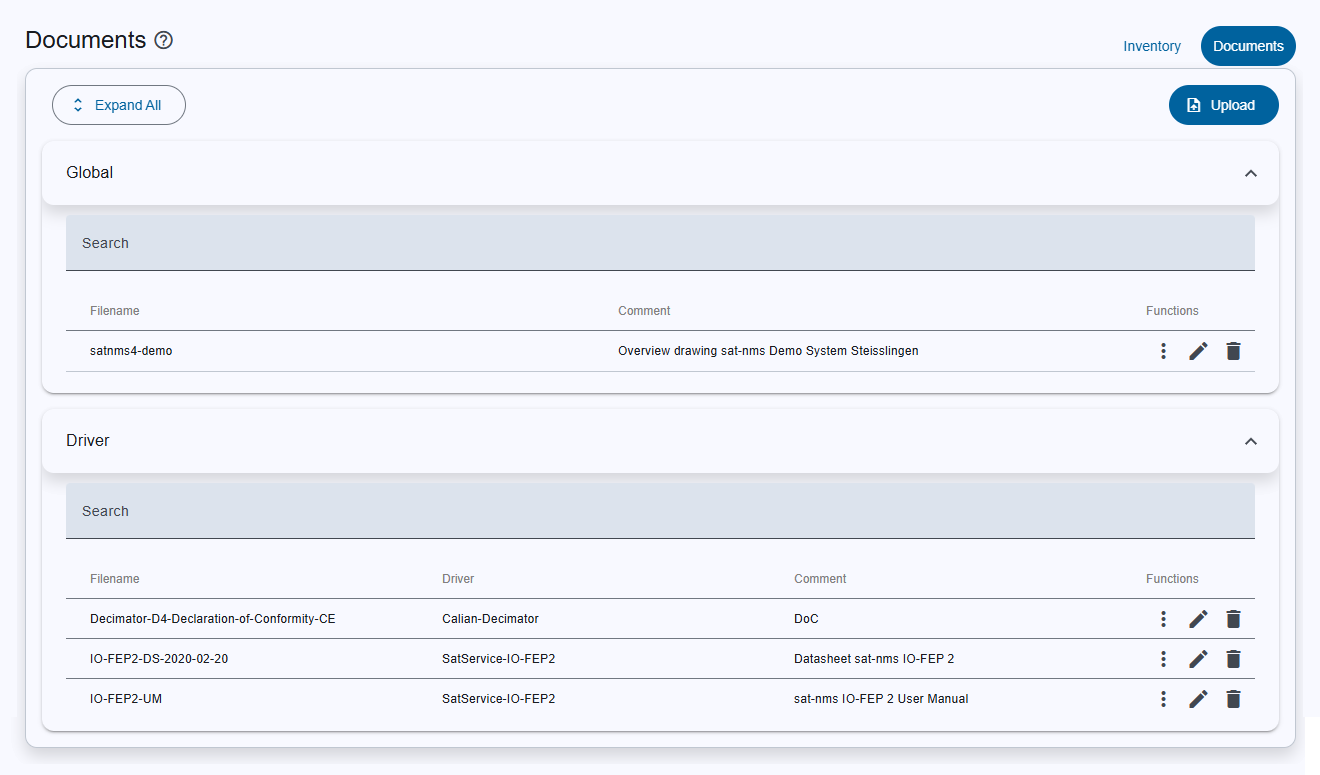

Additionally, documents can be uploaded to provide fast access to for example user manuals for equipment or test protocols for a specific device. Documents can be assigned to the overall system, a MNC system, or to a device driver.
